Audison – APK 165 – KIT 2Way AP 1+AP 6.5+Grilles
R 3,299,00
Returns: We offer a 14-day return policy on products returned with original packaging and receipt of purchase.
Get FREE SHIPPING for all orders over R3500!
Additional information

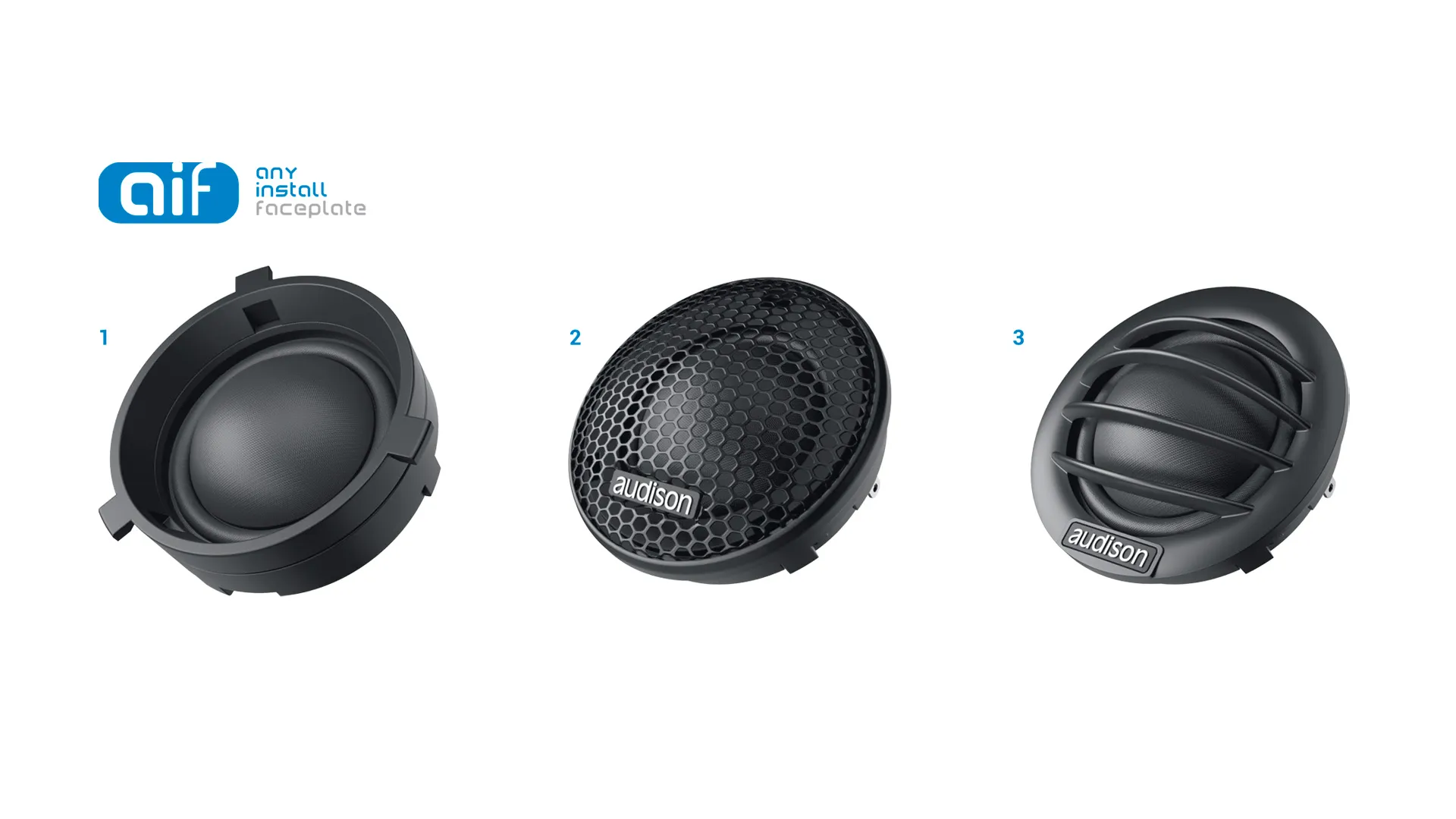

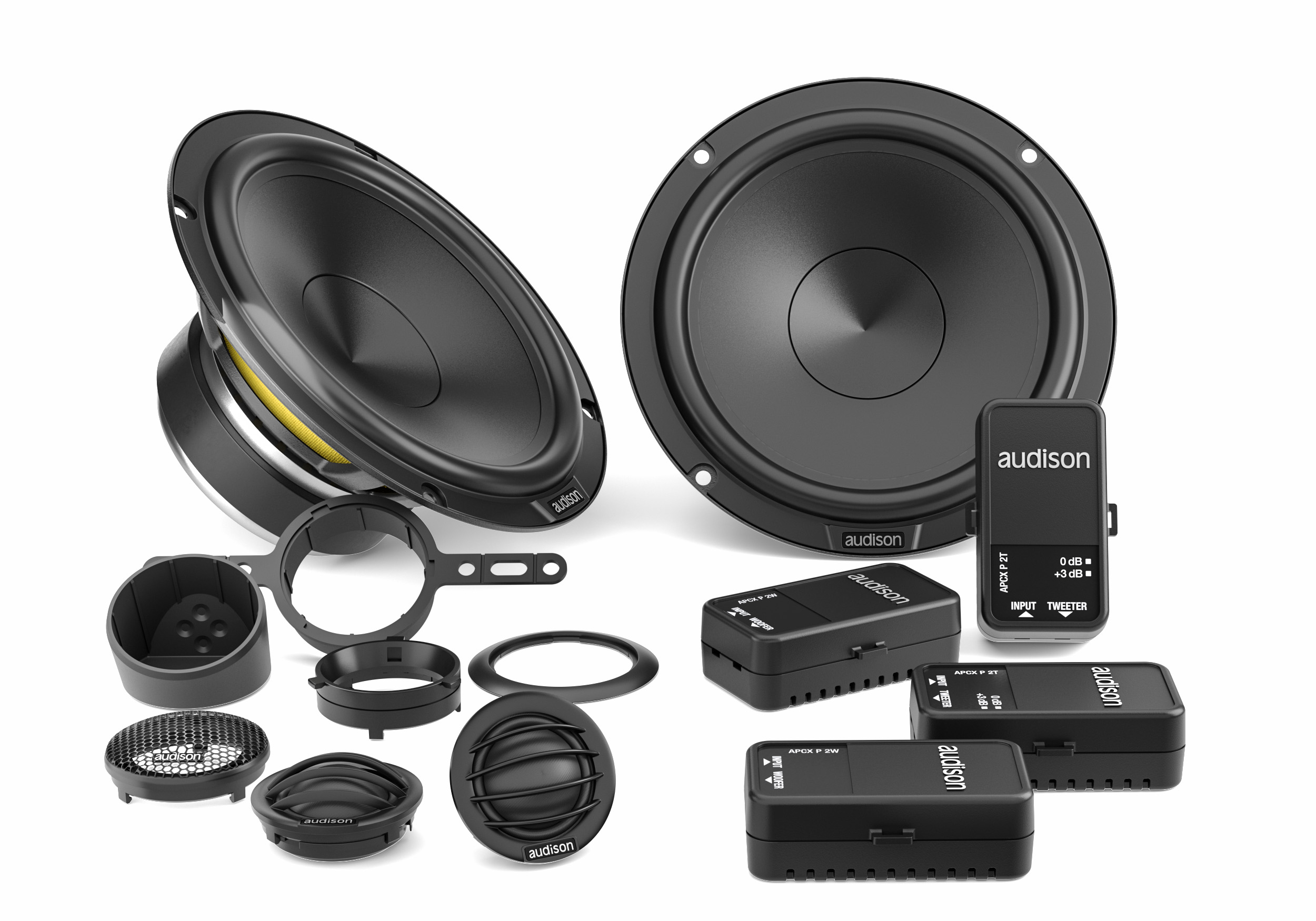

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 345 W |
| Power Handling – Continuous | 115 W |
| Frequency Response | 50 ÷ 24k |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Magnet Size | 100 x 40 x 18 |
| Crossover Level Adjustment | Tweeter Level; 0 / +3 |
Technical Specs HF
| Tweeter Size | 29 mm (1.14 in) |
| Voice Coil Diameter | 25 mm (1.26 in) |
| Dome Material | TETOLON FIBER |
Electric-acoustic Specs LF
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Mms | 14.6 g |
| Cms | 0.47 |
| BL | 5.35 |
| Qms | 7.6 |
| Qes | 1,74 |
| Qts | 0.55 |
| Vas | 11.4 l |
| Le | 0.29 mH |
| D | 132 sq mm (20.46 sq in) |
| Spl | 89.5 dB |
| Xmax | 5.6 mm (0.22 in) |
Kit Tech Data
| Crossover Low-Pass | Low-Pass: 4 kHz @ 6 dB/Oct |
| Crossover Hi-Pass | Hi-Pass: 4 KHz @ 12dB/Oct. |
| Cone Diameter | 132 mm |
General
| Weight Woofer | 1.45 kg |
| Weight Tweeter | 0.067 kg |
